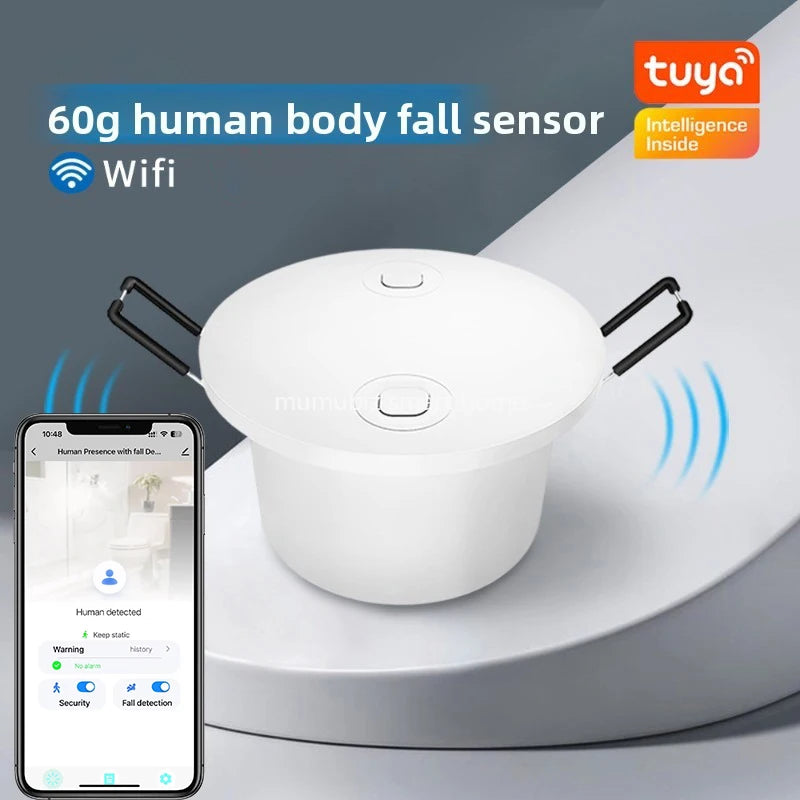

Tuya Remote Monitoring 60G Millimeter-Wave Radar Fall Detector High-Precision Human Presence Sensor, Essential for Elderly Care

Tuya Remote Monitoring 60G Millimeter-Wave Radar Fall Detector High-Precision Human Presence Sensor, Essential for Elderly Care

Product variants

$157.46

~~$0.00~~ $157.46

Quantity

In stock

I. Functional Description
This product, based on an enhanced Doppler radar signal processing mechanism, uses technology that simultaneously senses the Doppler parameters of human motion and physiological parameters. It wirelessly detects the status of people in specific locations and notifies the gateway via wireless signals, enabling scene linkage. It is suitable for use in homes, hotels, offices, and other locations. II. Features
 Accurately achieves simultaneous detection of moving and stationary individuals (sitting, falling);
 Maintains detection of stationary individuals and ensures real-time output;
 Quickly outputs the target's distance from the radar, indicating whether it is moving or approaching;
 Detects various motion amplitudes and outputs numerical values in real time;
 Limits detection to individuals with biometric characteristics (moving or stationary), eliminating interference from other inanimate objects in the environment;
 This module effectively eliminates interference from inanimate objects and can also detect inanimate moving objects;
III. Technical Advantages
 Strong environmental adaptability: Unaffected by light, temperature, haze, and other factors;
 High accuracy: Improved measurement accuracy for speed, distance, angle, and other measurements;
 Simple: Directly outputs measurement data quickly;
 Secure: No privacy leaks;
 Low output power, harmless to humans;

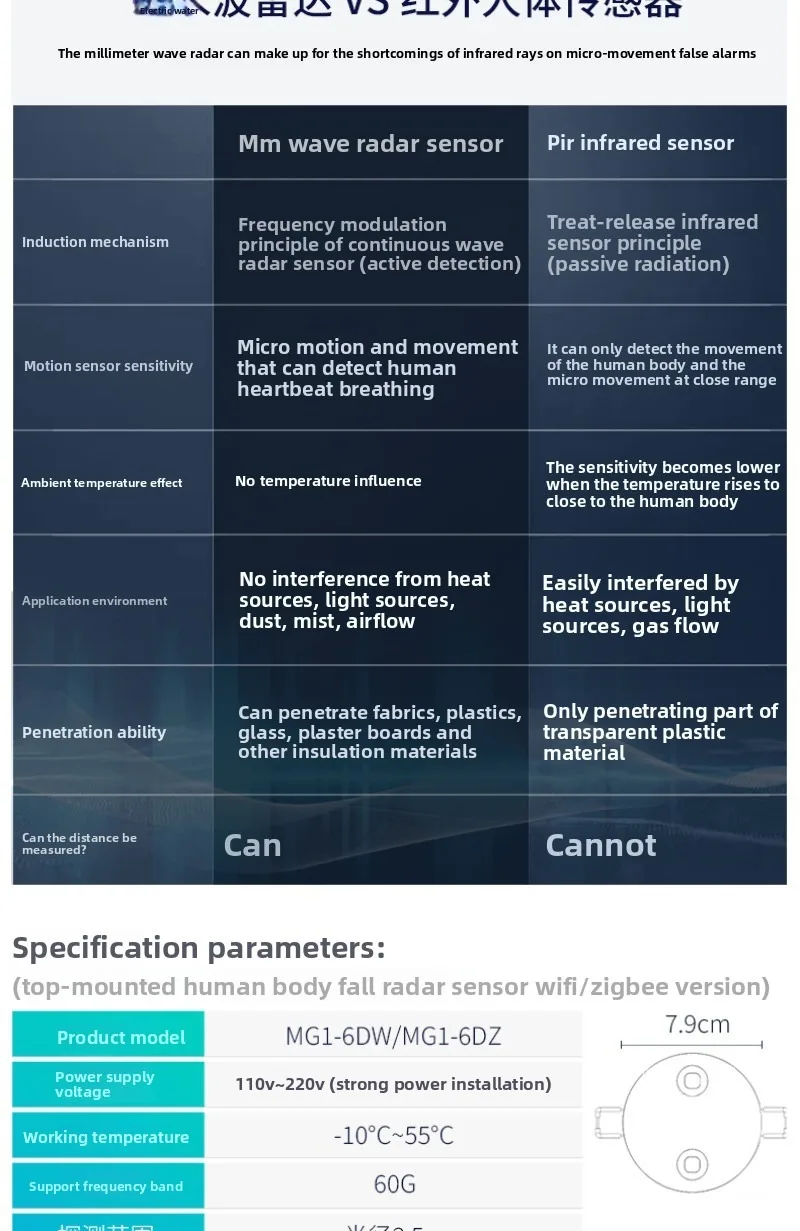

IV. Technical Parameters
Input: AC 110V~230V 0.03A
Power: 3W
Communication Type: Supports WiFi communication. Communication Range: 100 meters (open space).
Radar Frequency: 60GHz. Millimeter-Wave Radar Transmitter Power: ≤10dBm (10mW).

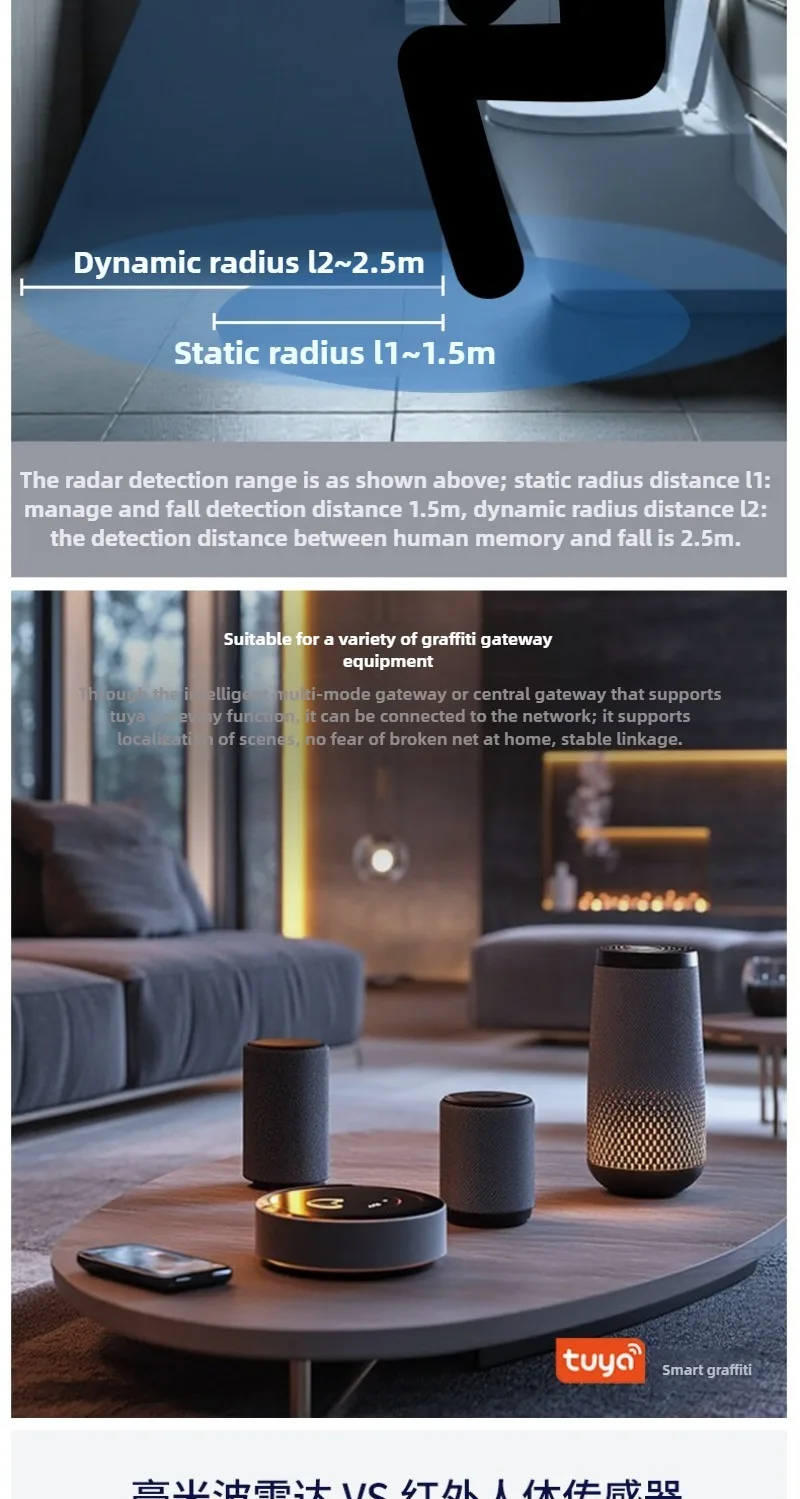

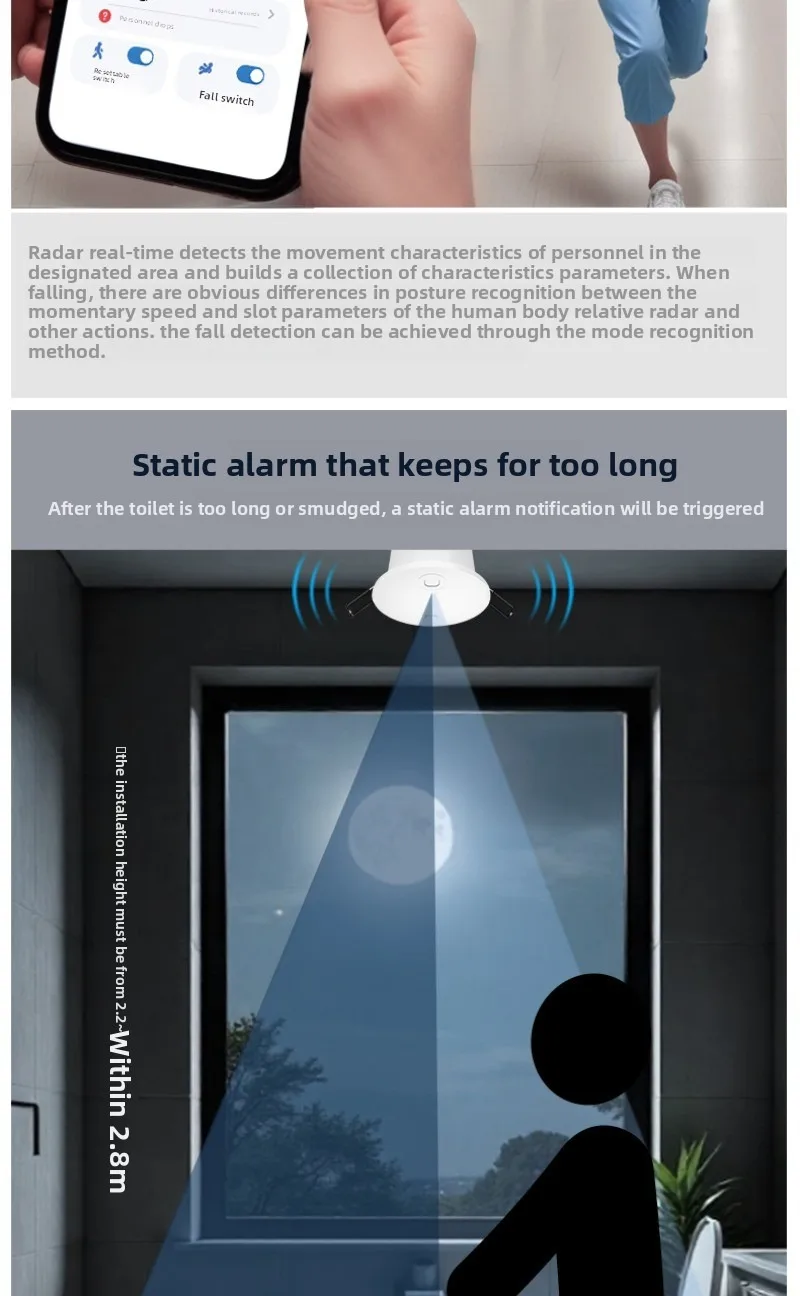

Detection Angle: 90° horizontal, 60° vertical, three-dimensional sector-shaped area. When monitoring vertically downward, the detection area is elliptical.
Response Speed: Approximately 0.5 seconds from no one to someone. After a person falls, the fall is reported in approximately 10 seconds. A person standing up approximately 1 meter below the radar will trigger the fall signal.
Operating Temperature: -10°C to +55°C.
Operating Humidity: Relative Humidity ≤95% RH.

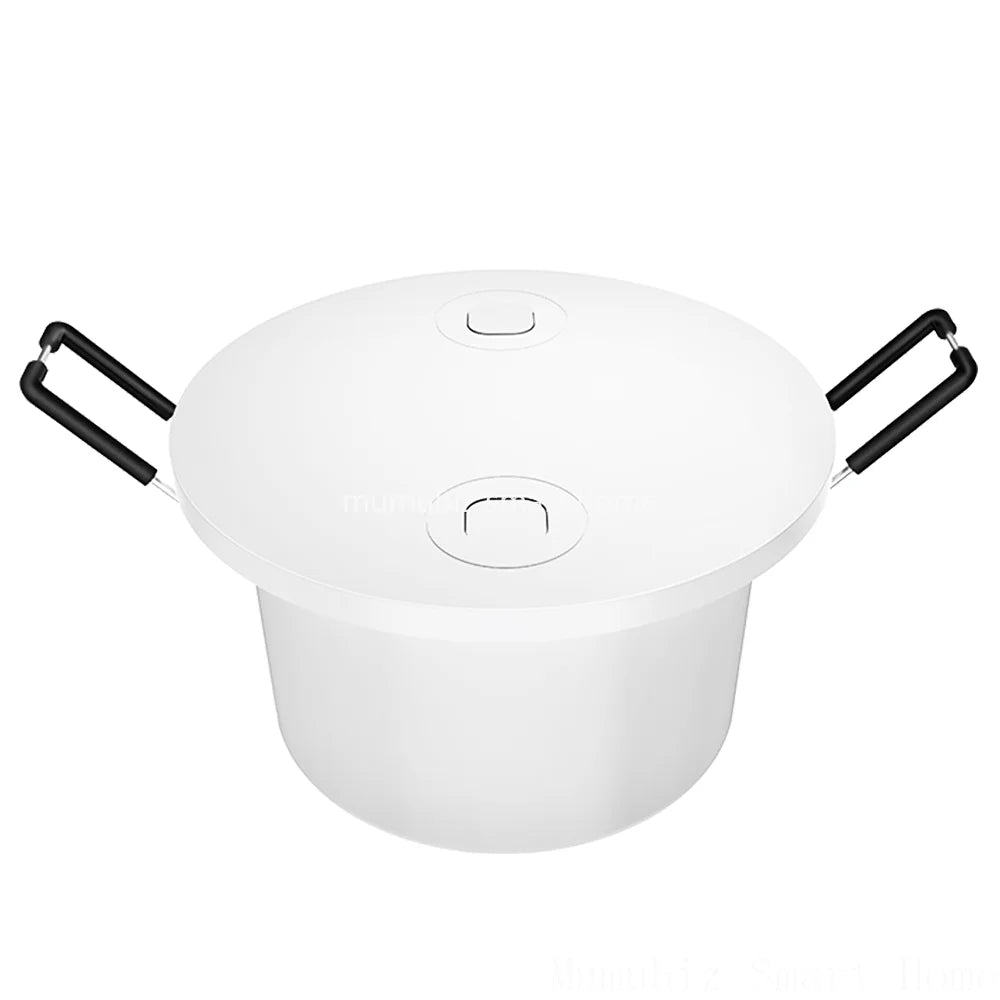

Dimensions: Φ80x45.5mm, mounting barrel diameter 65-70mm.
Mounting Method: Ceiling
