Product details

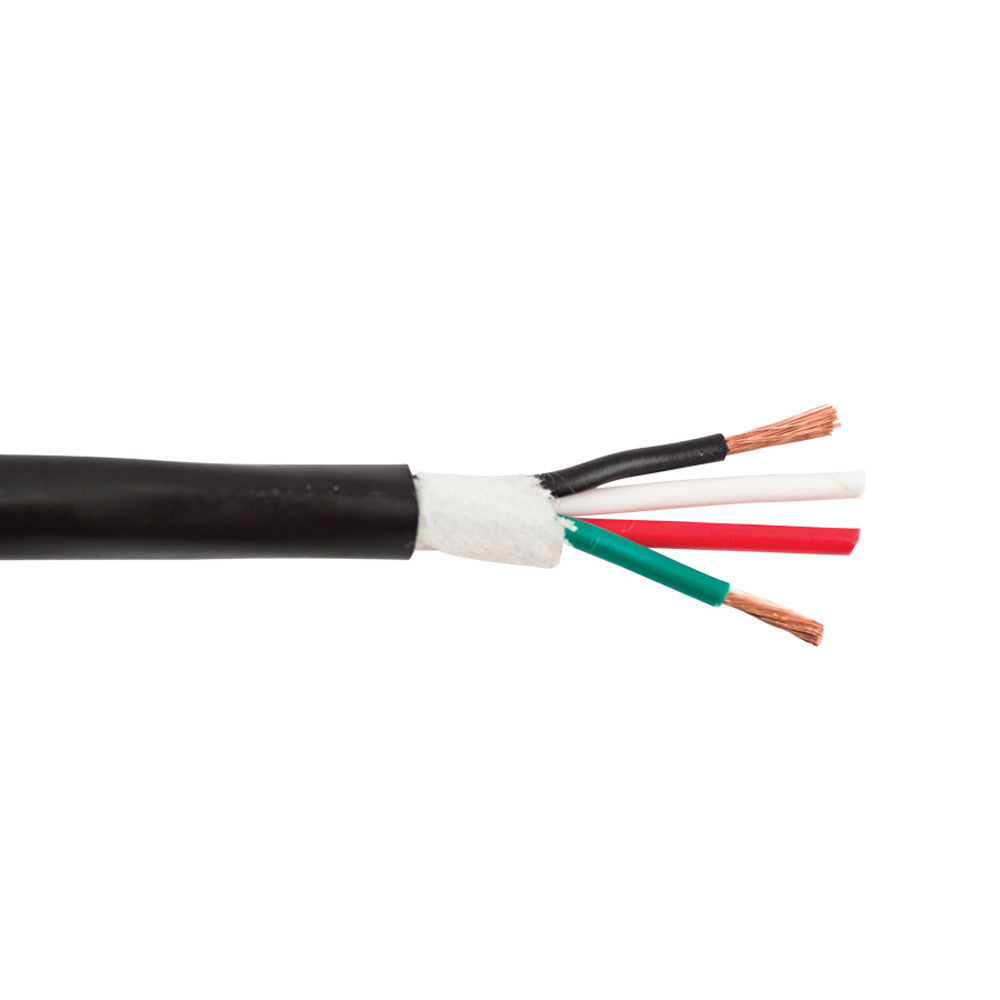

Introducing our high-quality Speaker Wire, designed with 16AWG thickness and 4 conductors for superior conductivity. This wire is perfect for outdoor use, featuring a Direct Burial design that withstands harsh weather conditions and exposure to moisture. With a length of 1,000 feet, this Speaker Wire offers plenty of coverage for your audio needs. Whether you’re setting up a sound system for a backyard party or installing speakers around the perimeter of your property, our Speaker Wire delivers excellent sound quality and durability. Don’t settle for subpar wiring – choose our Speaker Wire for reliable and long-lasting performance.
Product Specs
| Manufacturer Part # | 16/4DB |
| Marking | STRUCTURED CABLE PRODUCTS – – – P/N 16/4-DB – – – 4 COND 16 AWG STRANDED PE JKT CMX OUTDOOR / DIRECT BURIAL — CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXXFT |
| Regulatory | UL 444, NEC Article 760, NEC Article 725 |
| Application | Speaker Cable for Outdoor |
| Construction Characteristics | Core Wrap: PE Tape Filler: Waterproof Conductor Material: Stranded Bare Copper Size: 16AWG X 4C Construction: 65/0.16mm (0.0063 inch) ±0.004mm Insulation Material: PVC Min. Thickness: 0.27mm (0.0106 inch) Avg. Thickness: 0.31mm (0.0122 inch) Diameter: 2.10mm (0.0827″) ±0.05mm Colors: Black, Red, White, Green Jacket Material: LLDPE Min. Thickness: 0.54mm Avg. Thickness: 0.60mm (0.0339 inch) Diameter: 6.80mm ±0.10mm Rip Cord: Nylon Color: Black |
| Electrical & Physical Characteristics | Rating: 75°C 300V Conductor Resistance: Max 15.5ohm/km at 20°C Insulation Resistance: Min 50M ohm·km at 20°C Dielectric Strength: Min AC1.5KV AC Leakage Current Through Overall Jacket: AC 1500V Cold Bend Test: -20°C 4 hours; No Cracking Insulation Unaged: Tensile Strength: 13.8Mpa Elongation: 150 percent Insulation Aged: Tensile Strength: 11.7Mpa (100°C 168h) Elongation: 80 percent (100°C 168h) Jacket Unaged: Tensile Strength: 10.8Mpa Elongation: 300 percent Jacket Aged: Tensile Strength: 9.2Mpa (100°C 168h) Elongation: 150 percent (100°C 168h) |
