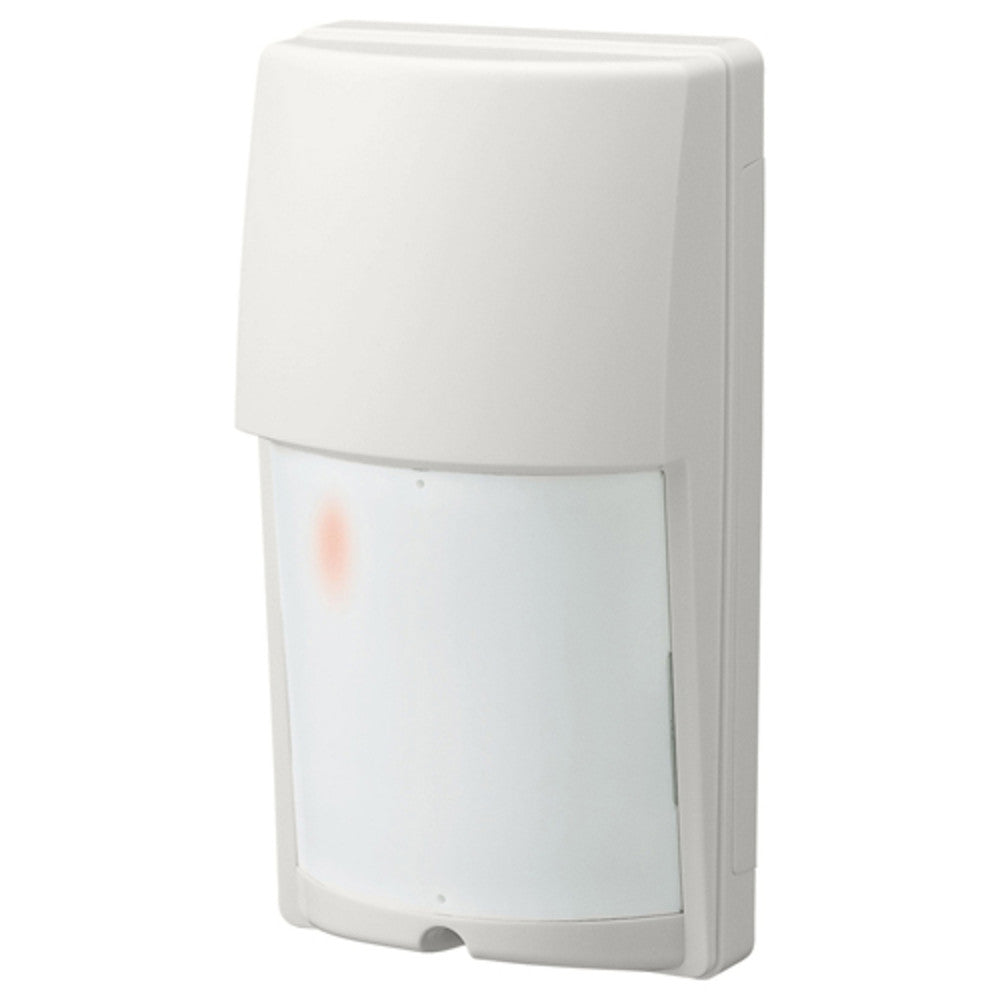

Optex Outdoor PIR Motion Sensor, Standard-Range Model

(5.00)5 Reviews
In Stock



Product details

The Optex Outdoor PIR Motion Sensor is a high-quality standard-range model that is perfect for adding an extra layer of security to your property. This motion sensor is designed with advanced technology that detects movement within its range, making it ideal for use in outdoor areas such as driveways, walkways, and gardens. With a detection range of up to 40 feet, this sensor is highly sensitive and can detect even the slightest movements. The Optex Outdoor PIR Motion Sensor is easy to install and comes with all the necessary hardware. It is weather-resistant and durable, making it suitable for use in any outdoor environment. This motion sensor is compatible with most security systems and is an excellent addition to any home or business security setup. With its reliable performance and advanced features, the Optex Outdoor PIR Motion Sensor is the perfect solution for your security needs.

Product Specs

Detection Method Passive Infrared
Detection Area 40 x 50 feet (12 x 15 m) 120° wide
Coverage Multi-level area: 40 zones
Pet alley area: 18 zones
Mounting Multi-level area: 8.3 feet (2.5 m)
Pet alley area: 4 to 5 feet (1.2 to 1.5 m)
Detection Speed 1 to 3.3 feet/second (0.3 to 1.0 m/sec.)
Sensitivity Adjustment Selectable 3 positions (H, M, L)
LED Indicator LED lights during detection
Alarm Period 2 seconds ±1 sec. (delay timer)
Alarm Output NC. NO. 28VDC 0.2A max.
Tamper Switch Opens when cover removed.
Pulse Count 2 (20 ±5 sec.) or TEST (1 pulse)
Day/Night Mode Adjustment Approx. 10 to 100,000 lux
Warm-Up Period Approx. 60 seconds
Power Input 10.8 to 13.2V DC
Current Draw 25mA max.
Installation Place Wall (indoor/outdoor)
Operating Temperature -20° to 50° C (-4° to 122° F)
Environmental Humidity 95% max.
Weight 6 ounces (170g)
IP Rating IP54
Accessory Masking strips (LX-402 only), mounting screw, sponge
