Product details

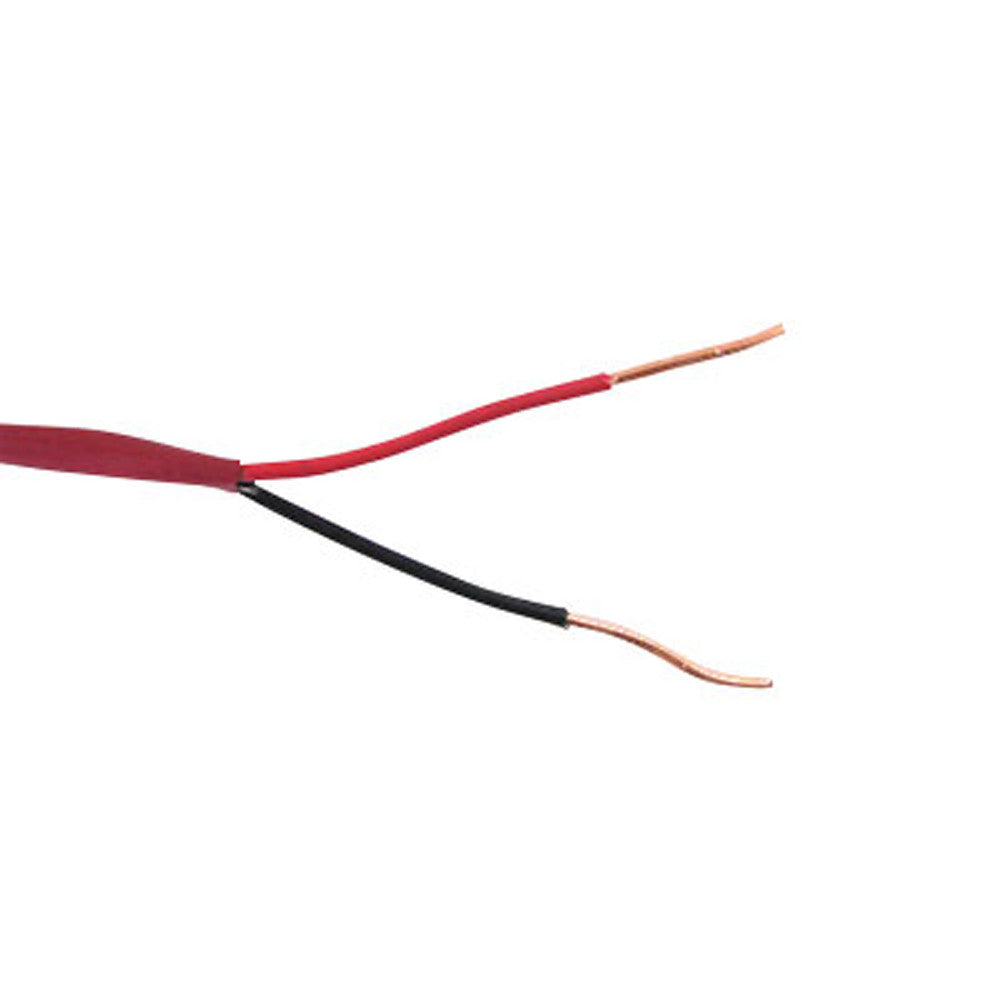

Introducing our premium quality Fire Alarm Wire, designed to meet all your fire safety needs. Made of high-quality 14AWG copper, this wire is perfect for connecting fire alarms and other safety devices in your home or office. The 2C design ensures reliable connection and transmission of signals between your alarm system and the central monitoring station. This wire is FPLP Plenum Rated, meaning it is safe for use in air handling spaces, making it perfect for commercial and industrial buildings. With a generous length of 500 ft, you will have plenty of wire to complete your installation with ease. Invest in the safety of your property today with our top-quality Fire Alarm Wire.
Product Specs
| Manufacturer Part # | 14/2FPLP-500 |
| Conductor | 14 AWG Solid SBC Conductor |
| Total Cable Weight | 56 kg/km |
| Final Diameter | 0.206 inches |
| Insulation | PVC |
| Jacket | PVC |
| DC Resistance | 25°C: 2.6 Ohms / 1000 feet |
| Mutual Capacitance | 24.6 pF/ft |
| Impedance | 73.7 Ohms |
| Velocity Of Propagation | 67 percent |
| Inductance | 1.2 mH/km |
| Print Notes | Sequentially marked per 2FT (0 – infinity) |
| Standard Print | STRUCTURED CABLE PRODUCTS – – – P/N 14/2FPLP – – – (UL) CL2P/CL3P E198137 OR FPLP 75°C FT-6 UNSH 2/C 14 AWG SOLID – – – ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 RoHS |
| Cabled OD Avg | 0.142 inches |
| Insulation Thickness | 0.011 inches |
| Jacket Thickness | 0.017 inches |
| Certified | UL CL2P/CL3P OR FPLP |
| Flame Rating | FT-6 |
| Max Voltage | 300V |
| NEC Articles | 760 FPLP |
| Min. Bend Radius/Minor Axis | 1.442 inches |
| Operating Temperature | -20° to 75°C |
| Standard UL Temp | 60°C |
