Product details

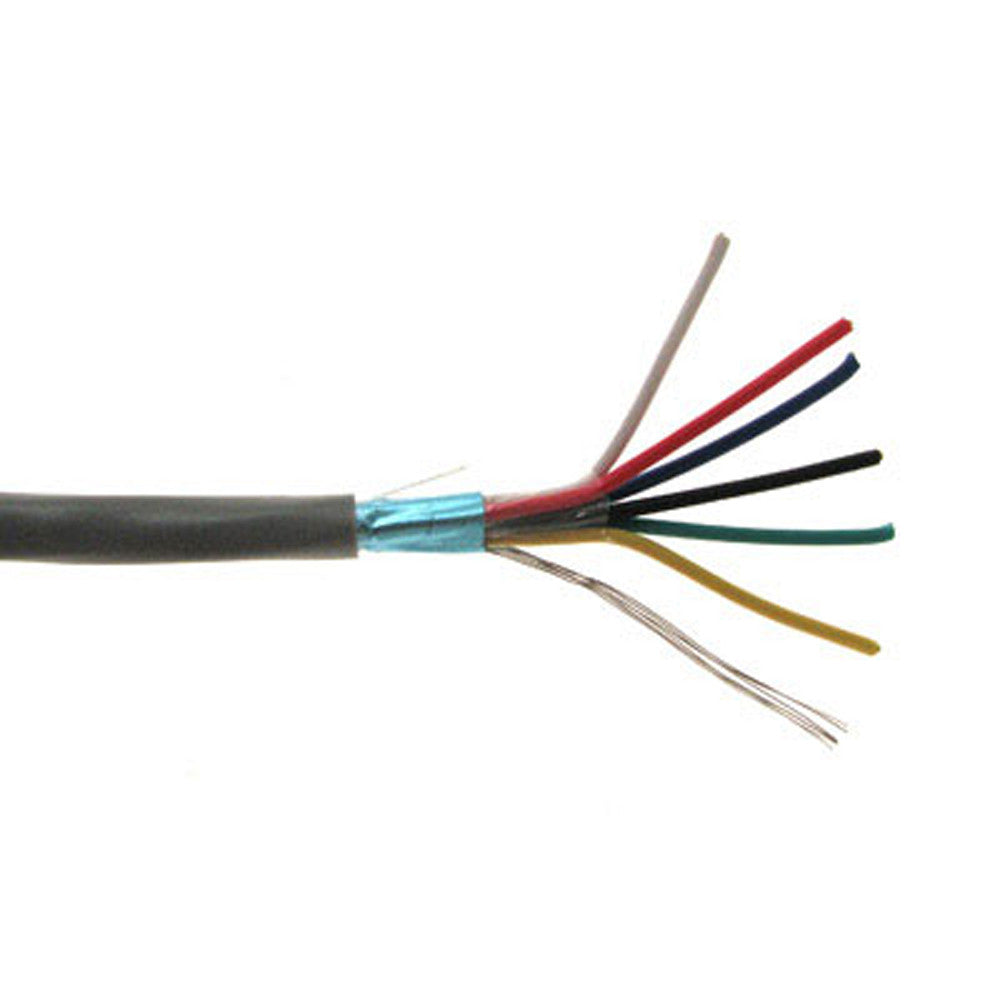

The Communication Security Wire 18AWG 6C, Shielded with Drain, 1,000 Ft is the perfect addition to any security system. Made with 18AWG, 6C, Shielded with Drain, and measuring 1,000 feet in length, this wire ensures that your communication lines are protected from interference and eavesdropping.
With its heavy-duty shielding, this wire guarantees that your transmissions remain private and secure. The drain wire allows for easy termination and grounding, making installation a breeze. Whether you’re setting up a new security system or upgrading an existing one, the Communication Security Wire is the reliable choice for your communication needs.
Product Specs
| Manufacturer Part # | 18/6SH-GY |
| Marking | STRUCTURED CABLE PRODUCTS – – – P/N 18/6SH – – – 6 COND 18 AWG STRANDED SHIELDED TYPE CMR/CL2R FT4 75C — (UL) OR C(UL) E198137 CE EU RoHS EC ZONE/DEVICE A B C D E 0 1 2 3 4 5 6 7 8 9 XXXXFT Regulatory: UL 444, UL 13, NEC Article 760, NEC Article 725 |
| Application | Security Cable for Outdoor |
| Conductor Material | Stranded Bare Copper |
| Size | 18AWG X 6C |
| Construction | 16/0.24mm ±0.004mm |
| Insulation Material | PVC |
| Min. Thickness | 0.27mm |
| Avg. Thickness | 0.30mm |
| Diameter | 1.70mm ±0.05mm |
| Colors | Black, Red, White, Green, Blue, Brown |
| Shield Core Wrap | PE Tape |
| Drain Wire (TC) | 7/0.20 ±0.004mm |
| Shield | AL Foil |
| Jacket Material | PVC |
| Min. Thickness | 0.50mm |
| Avg. Thickness | 0.55mm |
| Diameter | 6.50mm ±0.10mm |
| Rip Cord | Nylon |
| Color | Gray |
| Rating | 75°C 300V |
| Conductor Resistance | Max 24.4ohm/km at 20°C |
| Dielectric Strength | Min AC1.5KV |
| AC Leakage Current Through Overall Jacket | AC 1500V Twists Per Foot: 3.0 |
| Cold Bend Test | -20°C 4 hours; No Cracking |
| Insulation Unaged | Tensile Strength: 13.8Mpa Elongation: 150 percent Aged: Tensile Strength: 11.7Mpa (100°C 168h) Elongation: 80 percent (100°C 168h) |
| Jacket Unaged | Tensile Strength: 13.8Mpa Elongation: 150 percent Aged: Tensile Strength: 11.7Mpa (100°C 168h) Elongation: 80 percent (100°C 168h) |
