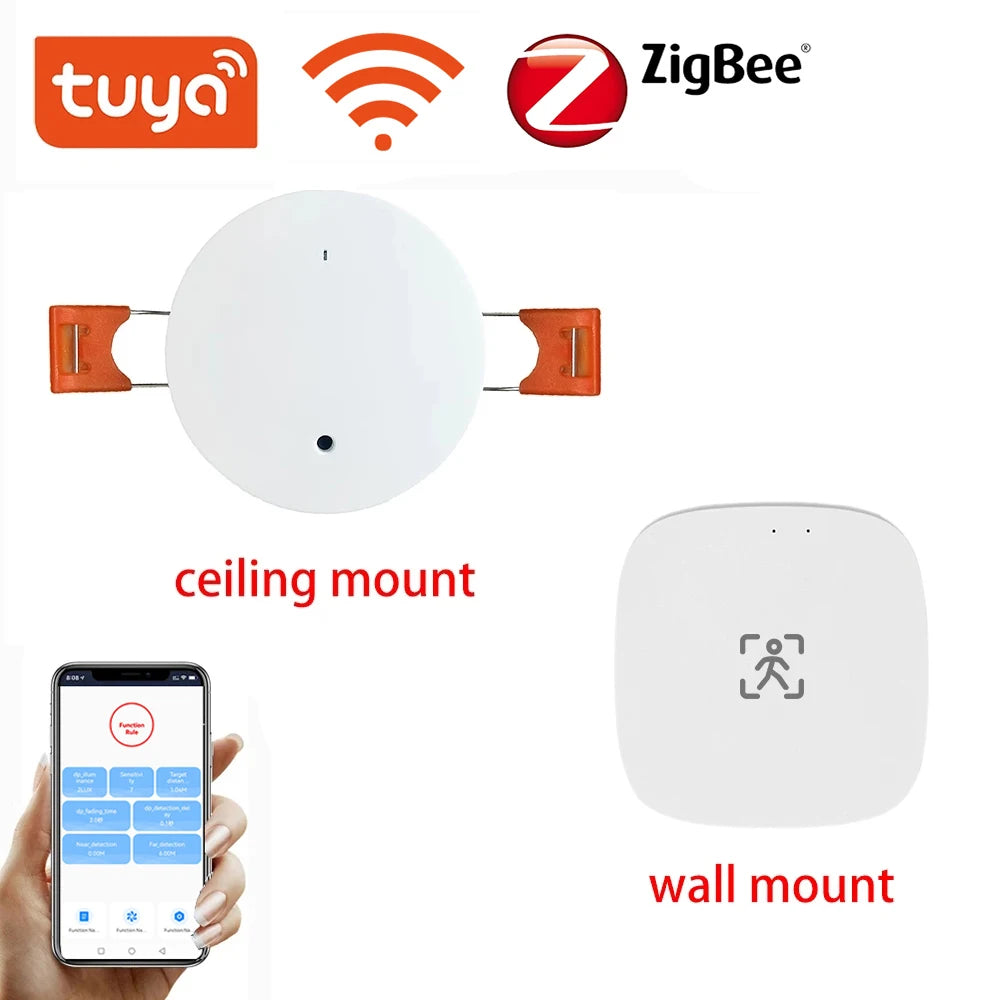

Tuya Wifi/Zigbee Smart Human Presence Detector Millimeter Wave Radar Detection Sensor for Home Security and Energy Conservation

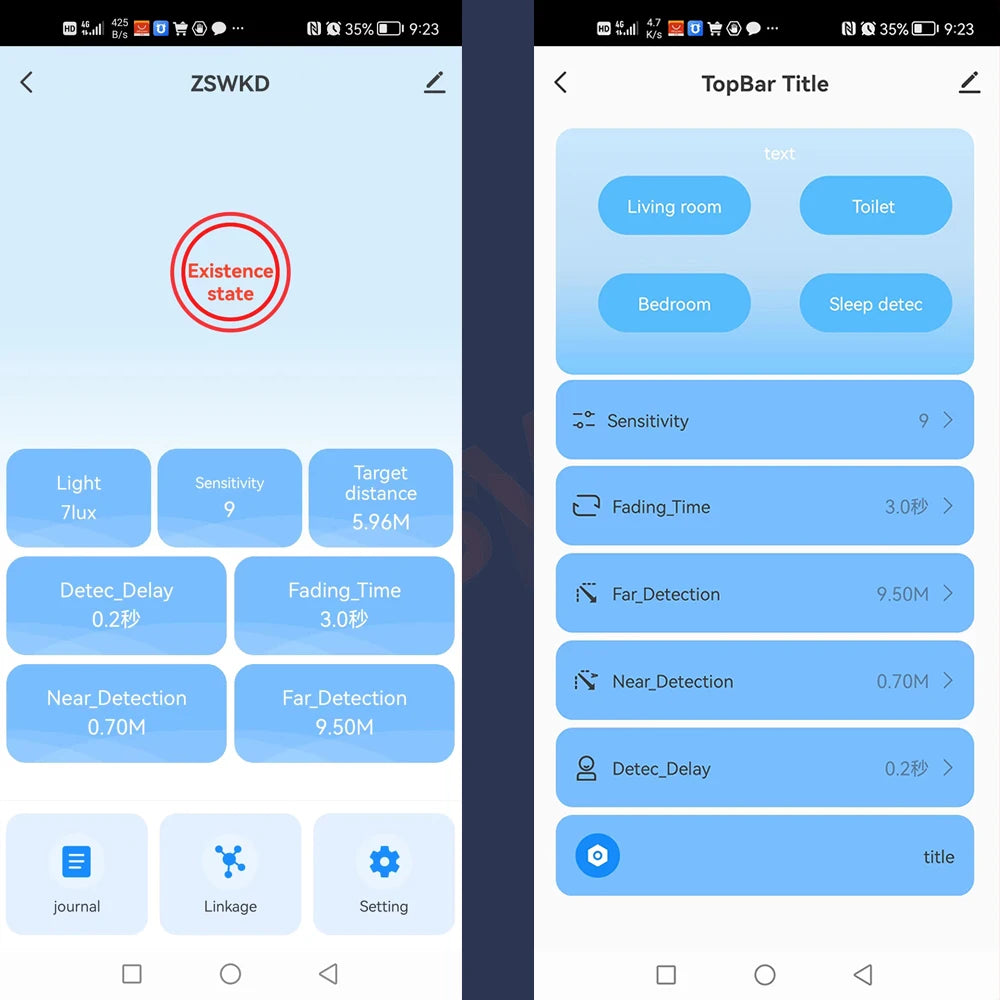

Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant annoying movement and reduce false alarm rate.

Specifications:

Network: ZigBee3.0 / Wifi.

Bluetooth version: Bluetooth 5.0

Radar transmitting frequency: 5.8GHz

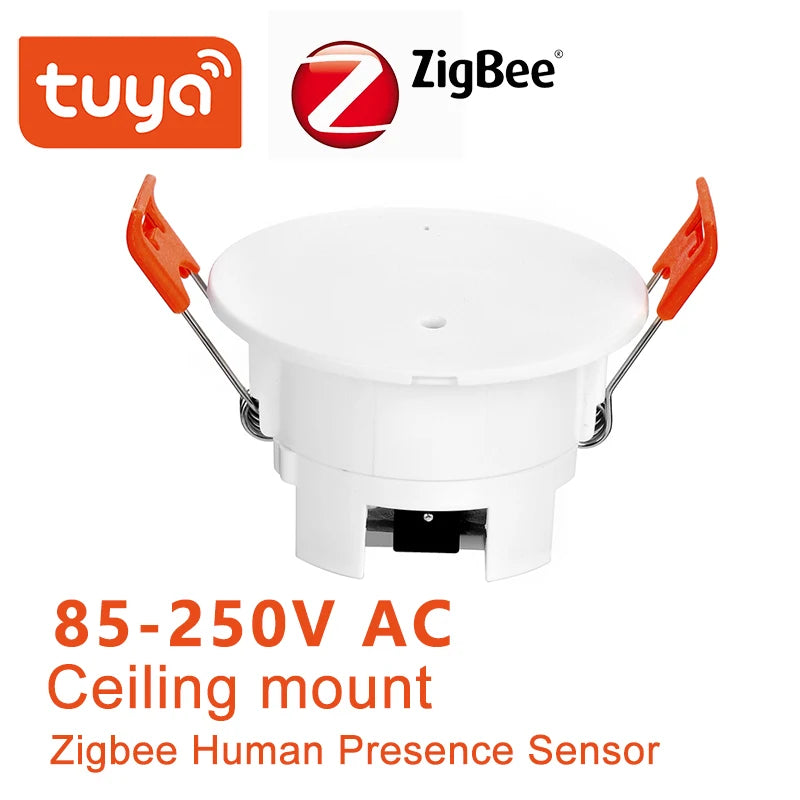

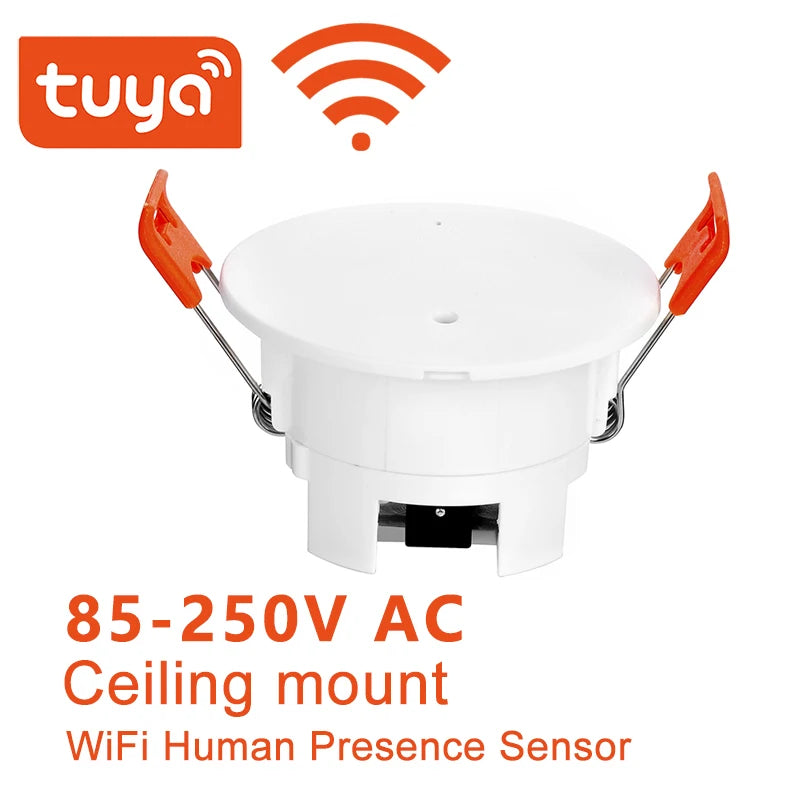

Celling mount sensor input: 80-240VAC.

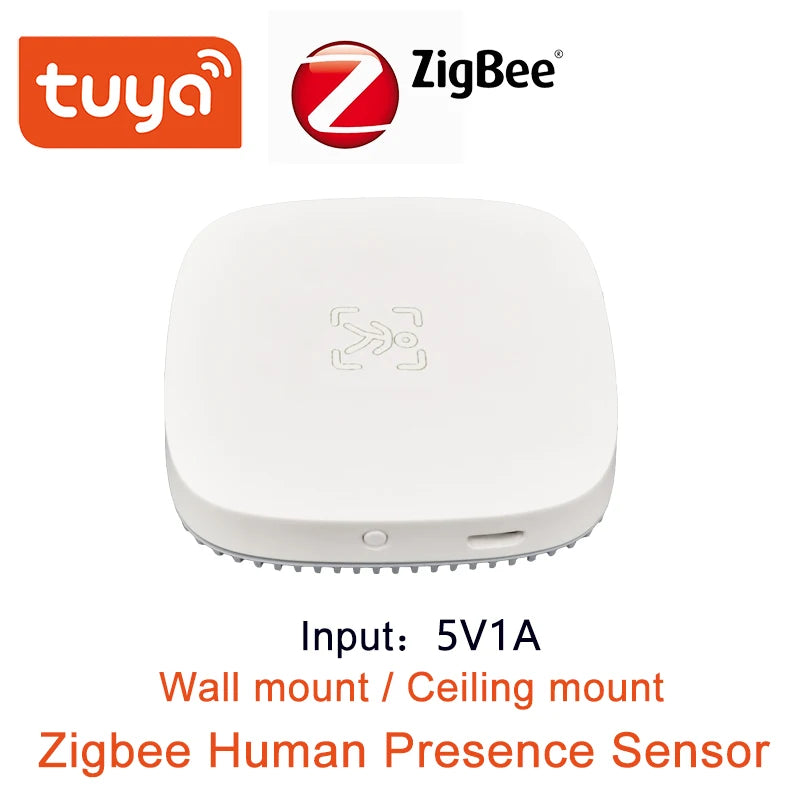

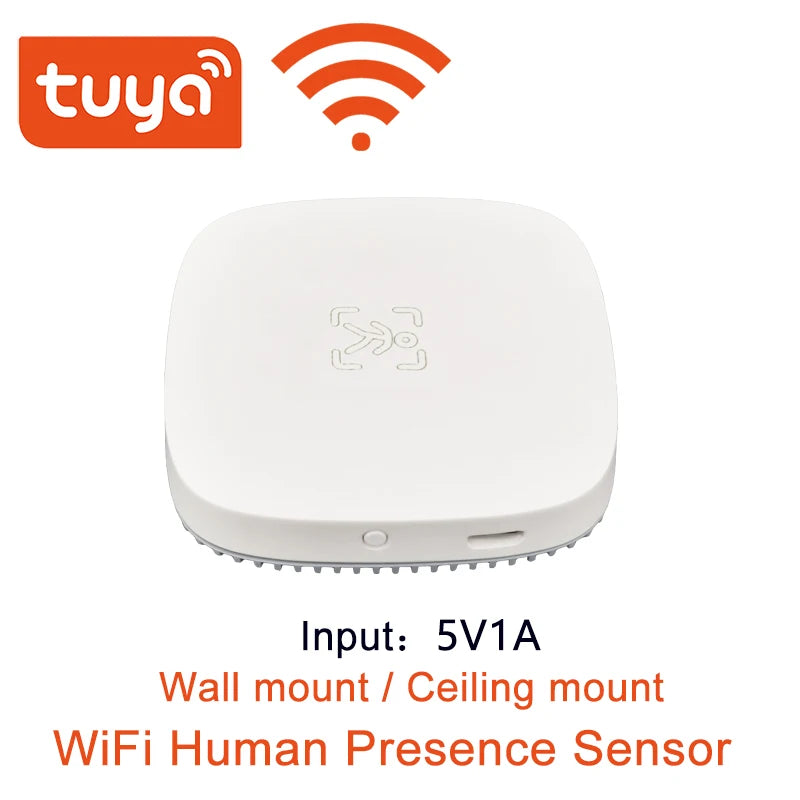

Wall mount sensor input: Micro USB 5V 1A

Maximum detection distance: 11m

Sensitivity: 1-9(default 7)

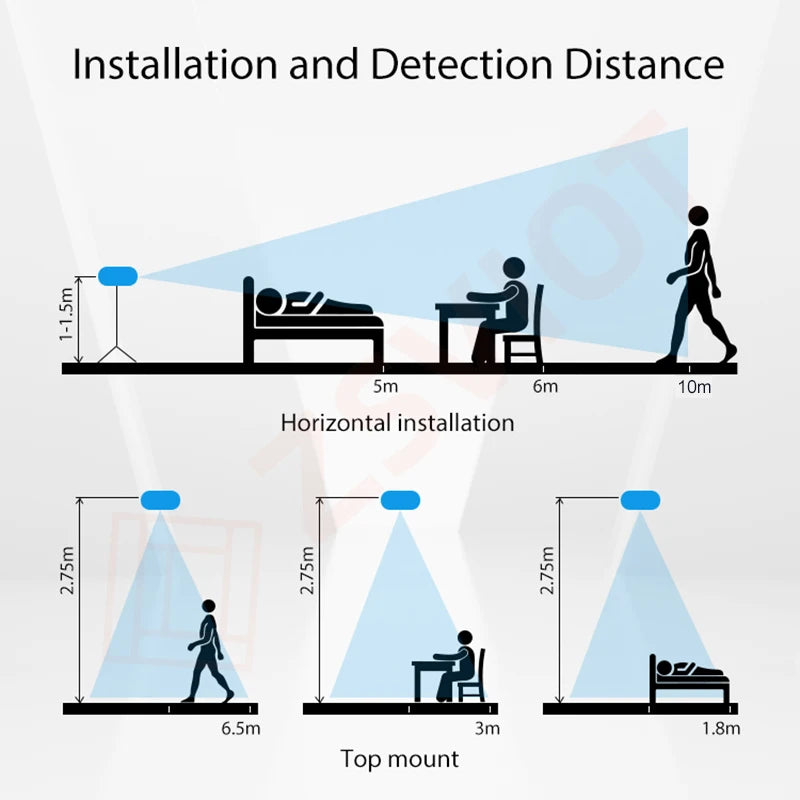

Wall mount sensor sensing distance: 0.3-9m(Default 6m).

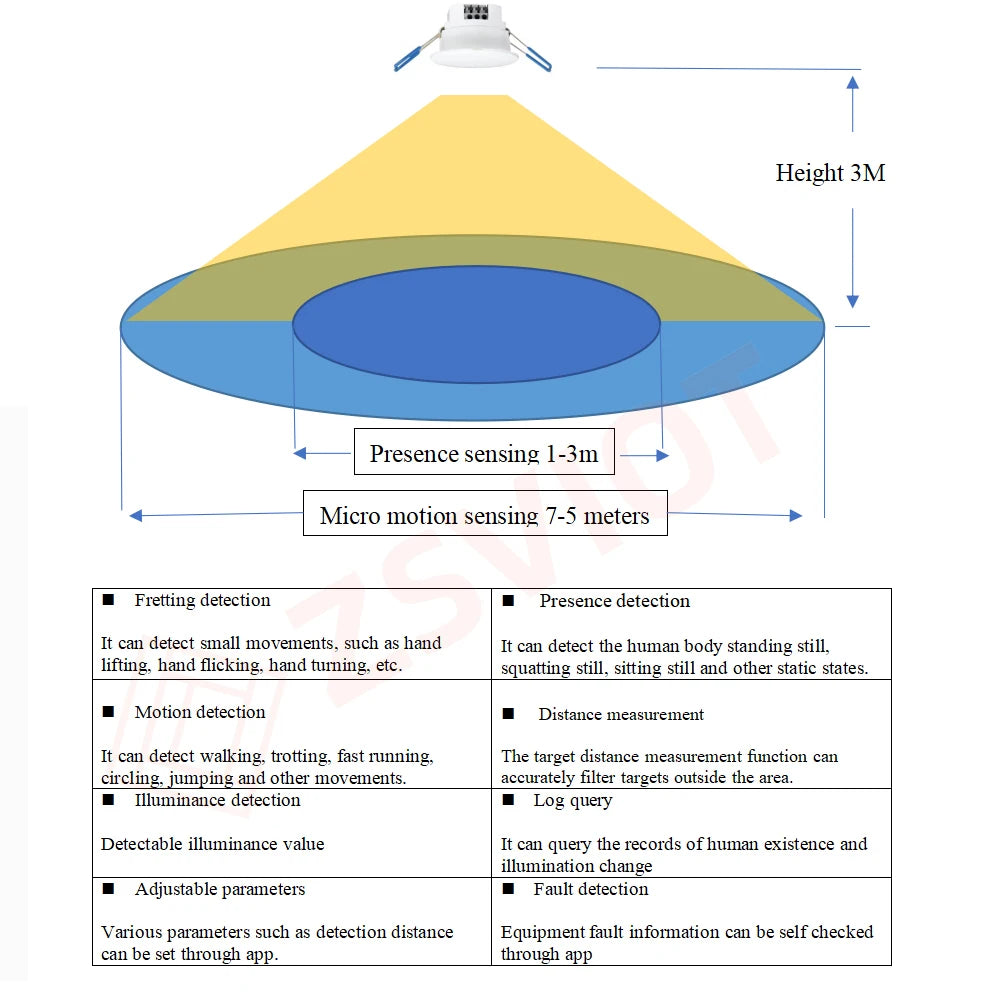

Celling mount sensor sensing radius: 0-7m(Default 5m).

Directly opposite the vertical plane 30°

Detection angle: Directly opposite the horizontal plane 100°

Illuminance Sensor: 0-2000 LUX.

Target detection confirmation time:0-10s

Target disappearance delay time:2-1500s.

Celling Mount Size: :Φ61*H39 mm

Celling Mount Opening Size: 53-58mm

Wall Mount Size: Size:65mm x 65mm x 12mm

Package list:

Human presence sensor*1

User manual*1

Plug（Celling Mount）

USB Cable*1（Wall Mount)
