Smart Zigbee Soil Tester Humidity Sensor Tuya APP Real-Time Monitoring Plant Monitor Detector Garden Thermo Hygrometer

Smart ZigBee Soil Tester Temperature Meter Moisture Humidity Sensor Plant Monitor Detector Garden Tuya APP Real-time Monitoring

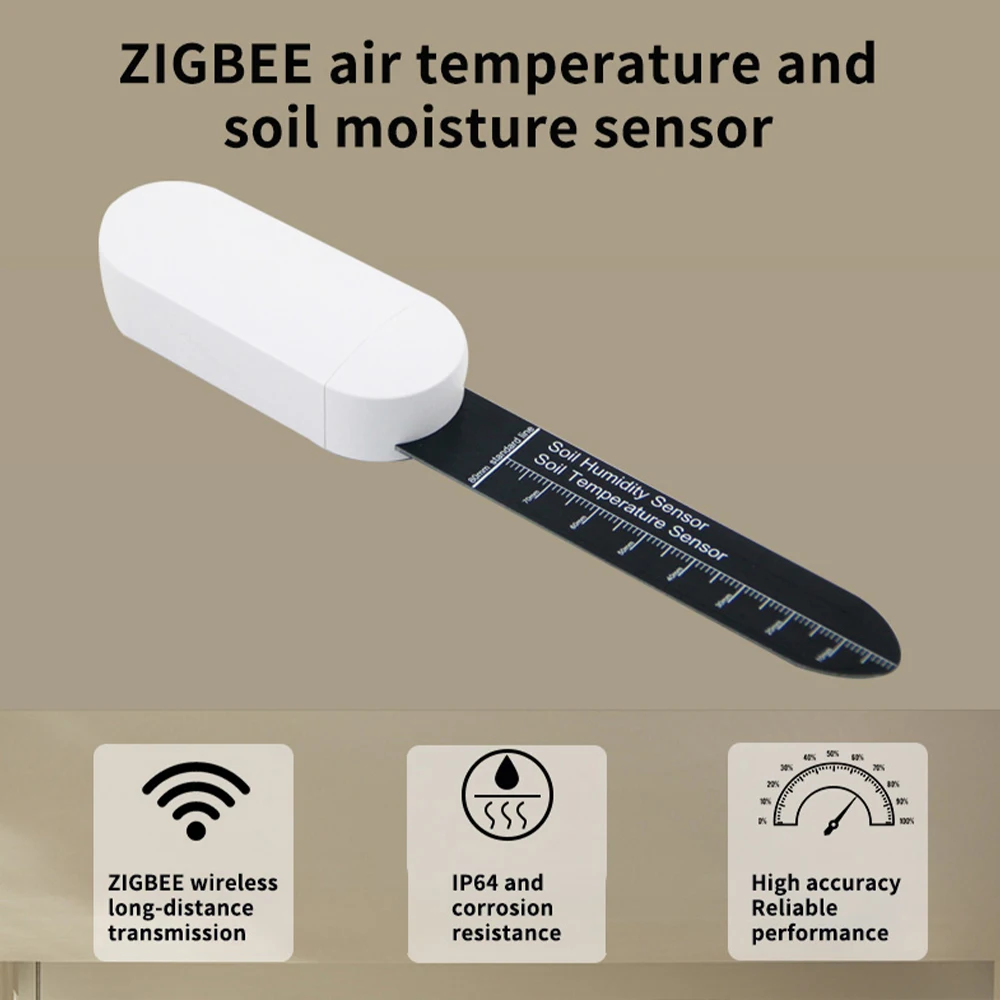

This Zigbee smart soil moisture test meter tool fully embodies the characteristics of intelligence and convenience. It can be used immediately after being inserted into the soil. There are indicator lights to get the test results concisely and clearly. It is suitable for a variety of soil materials and the test is simpler. It is a useful helper in your garden.

Note: You must have a Zigbee gateway.

1.Product overview

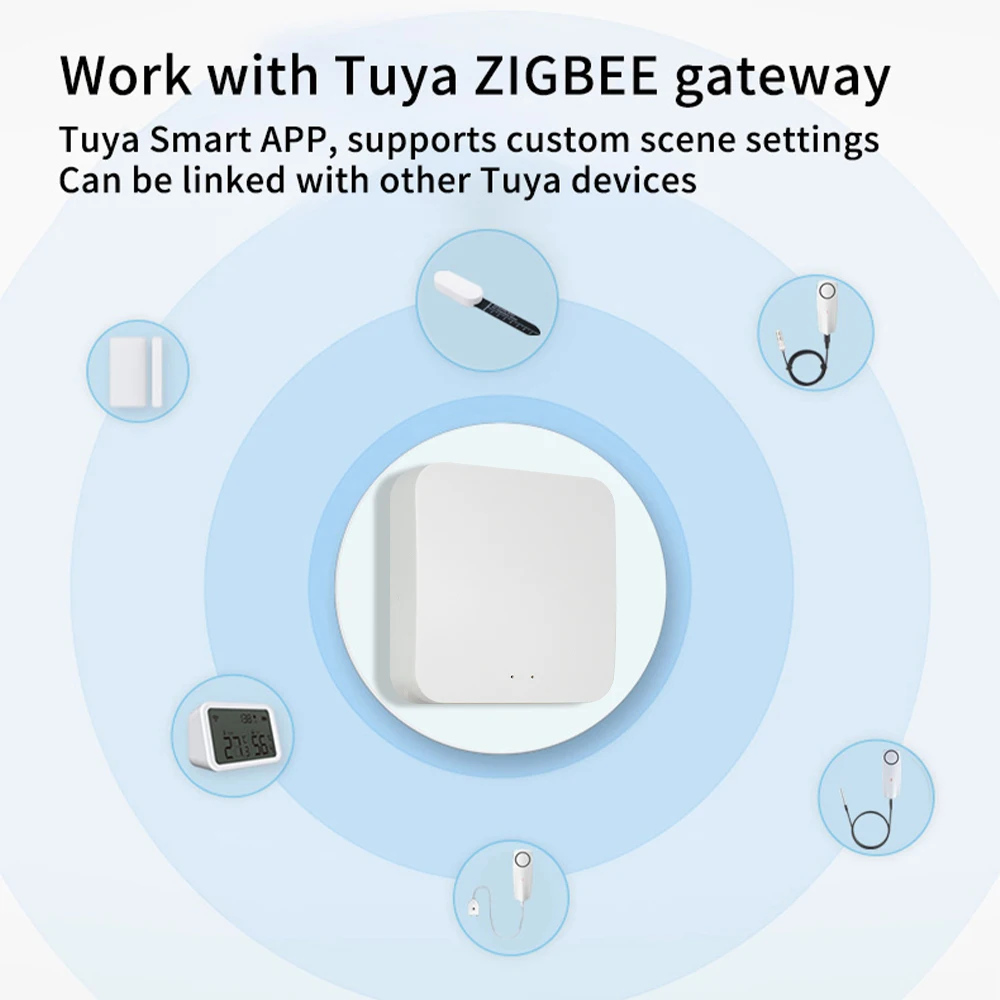

This product is a zigbee soil temperature and humidity detector. It adopts advanced signal analysis and processing technology, and uses a resistive sensor to measure soil moisture based on the principle of soil resistivity changes with its water content, which ensures the stability of the product from the design. It is used to avoid the root system of plants from drying up and rotting due to the problem of high and low soil temperature and humidity. The soil data detected by the device is transmitted to the zigbee gateway through the wireless zigbee signal, and the gateway is connected to WiFi and transmits data to mobile APP to realize long-distance monitoring of soil temperature and humidity. It is widely applicable in various occasions such as tray planting flower boxes, courtyard gardens,farmland, vegetable fields, greenhouses, grasslands, etc.

2.Product features

1.Zigbee wireless signal transmission
2.View temperature and humidity data on mobile APP
3.Intelligent signal analysis technology
4.Historical data curves viewable when long-term insertion in the soil
5.Ultra-low power consumption, standby for more than one year
6.Zigbee intelligent automation linkage (can be linked to automatic irrigation equipment)

3.Parameter

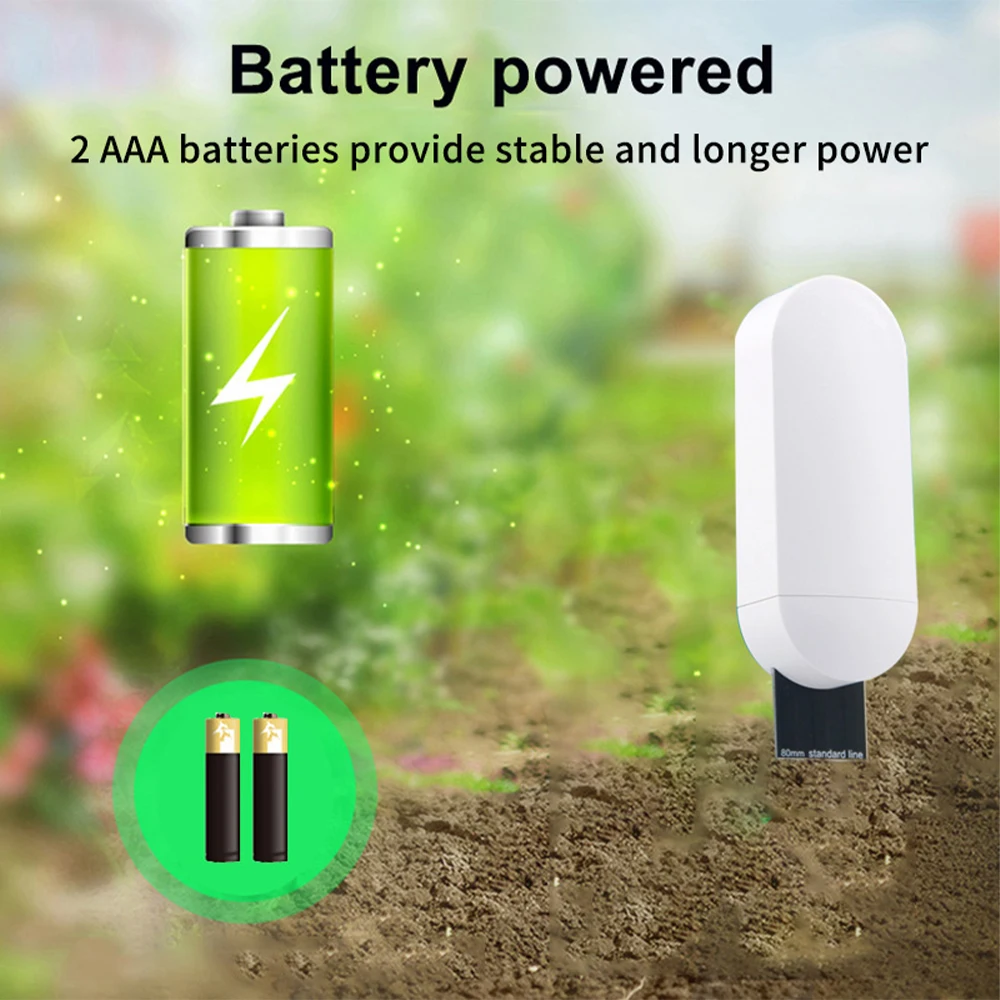

Battery: Two AAA batteries(Battery not included)
Standby crrent: 3.5uA
Working current: 18mA
Pairing indicator: Red light flashes
Battery standby time:oneyear
Detection environmenttemperature:-20°C-60°C
Detection soil moisture: 0%—100%
(no condensation)
Measurement error: ±2°C:±10%

Working mode:(low power saving mode) After powering on and pairing with the gateway, the soil temperature and humidity datawillbe detected every 2 minutes for the first 20 minutes and uploaded to the APP.After 20 minutes,the soil temperature and humiditywill be detected every 1 hour and uploaded to the APP.（Long-term insertion into the soil)

Package contains

1pcs soil Tester
1pcs manual

Attention:
It does not include a Zigbee gateway.

4.Installation Instructions

1.Find the Zigbee gateway in the mobile phone APP ---add a sub-device --- press and hold the pairing button of the soil device for 6s-12s ---the red LED blinks rapidly on the device --- and the mobile phone APP automatically searches for the device --- Add and save it.

Note:The device is a low-power device. Press the button to enter the pairing mode. Please operate within 2 minutes after the power is
turned on.After 2 minutes, the device button will be locked. (The battery can be disassembled and reset)

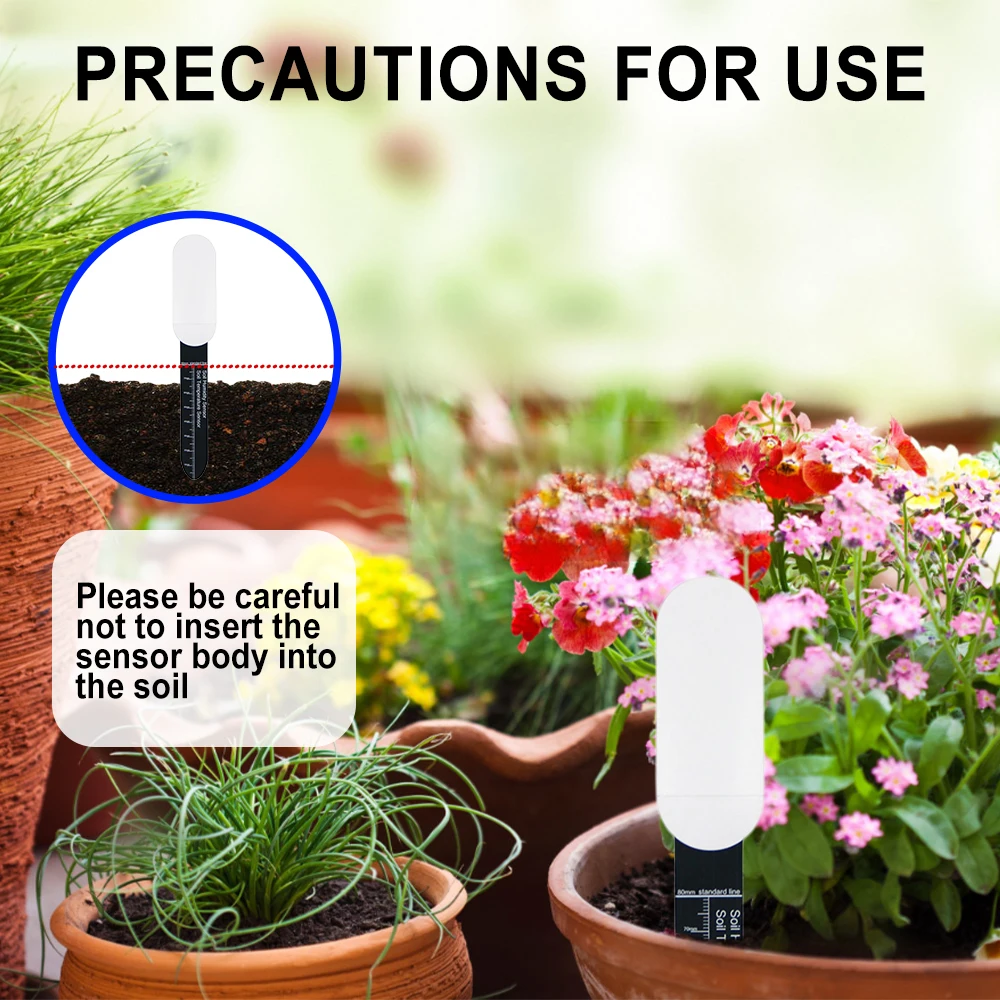

5.Precautions for use

1.Avoid installing the device outdoors. The device is sightly waterproof and dustproof, but does not support long-term use in rain.

2.Two identical devices may have errs in measuring humidity dueto different soils,nlding varios sand,organic matter,granular sawdust, and the internal gap density and compactness of thesoil, detection of the device. but this does not affect the normal and accurate

3.The humidity is relative humidity, not absolute humidity. If you insert it into dry soil without any water, there is also a humidity value. This value is the humidity value when dry. After the soil is filled with water, this humidity value is the relative humidity. The difference between the humidity when dry and the humidity after filling with water is the real humidity value. To judge whether the soil moisture is sufficient, the humidity when dry is the basic parameter, and the difference is the basis for judging the soil moisture.

4.The quality of this product is stable, but it cannot be guaranteed to be perfectly safe. In addition to using this product correctly, the device should be regularly inspected and maintained. The APP data records should be checked regularly; Observe the battery usage and state regularly.

5.As long as the device is connected to the Zigbee gateway, the mobile phone(networked) can check the device status at any time. If the device has been paired with the Zigbee gateway, the device will try to connect automatically after power failure and no need to re-pair it. If the device is disconnected from the Zigbee gateway for 1 hour, the mobile phone APP will show it as offline.
