Product details

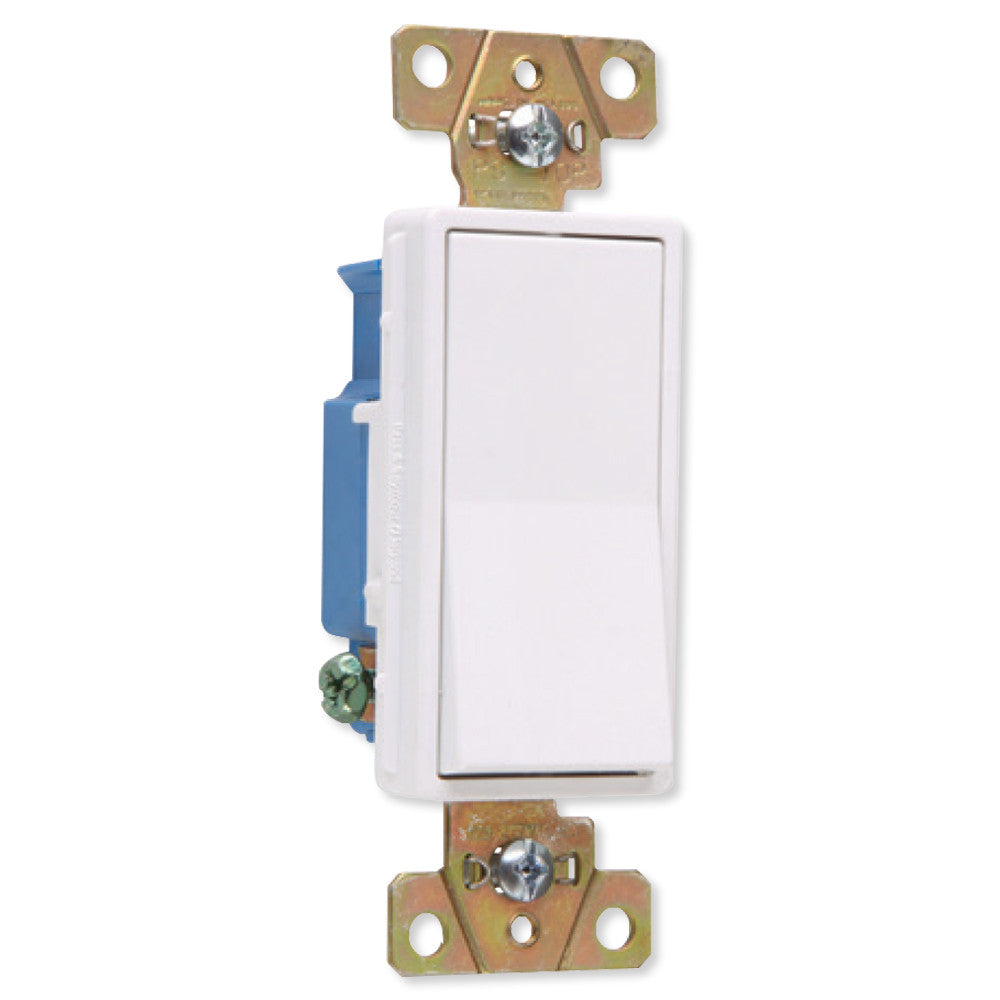

The On-Q/Legrand 3-Way Decorator Wall Switch is a high-quality, construction-grade switch designed for use in commercial and residential settings. This switch allows for control of a single light or fixture from two different locations, making it a versatile and convenient option for any space. The decorator-style design features a sleek, modern look and smooth, responsive operation. Constructed from durable materials, this switch is built to withstand the rigors of frequent use and is sure to provide reliable performance for years to come.
Whether you’re looking to upgrade your existing switches or outfitting a new construction project, the On-Q/Legrand 3-Way Decorator Wall Switch is an excellent choice for anyone seeking a reliable, high-quality light control solution. The sepcification of On-Q/Legrand 3-Way Decorator Wall Switch is below
Product Specs
Soring:Zinc-Plated Steel
| Manufacturer Part # | 2603W |
| Number Of Poles | 3-way |
| Wiring | Back and Side |
| Style | Decorator |
| Color | White |
| Amps | 15A |
| Volts | 120/277VAC |
| Dimensions | 1.06(D) x 3.531(H) x 1.3(W) inches |
| Country Of Origin | Mexico |
| Buy American Act Status | Trade Agreement Act Compliant |
| Approvals | UL Listed, File Number E140597, Standard UL20, General Use Snap Switches. CSA Certified, File Number LR17446, Standard CSA-C22.2 No. 111 General Use Snap Switches. |
| CSA Listing Info | C22.2 111 |
| CSA Standard | Yes |
| UL Listing No | 20 |
| UL Standard | Yes |
| UN SPSC | 39121507 |
| Warranty | 1 Year |
| Electrical Dielectric Withstand Voltage | 1500V Minimum |
| Maximum Working Voltage | 277VAC |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Temperature Rise | 30°C maximum at rated current |
| Maximum Continuous Current | 277VAC |
| Endurance | 10,000 cycles minimum, resistive, inductive, tungsten filament lamp load |
| Mechanical Terminal Accommodations | #14 AWG – #10 AWG |
| Environmental Flammability | UL94 V2 |
| Materials Back Body | Polycarbonate |
| Frame | Polycarbonate |
| Paddle | Thermoplastic |
| Terminals: | Brass |
| Terminal Screws: | Tri-Drive Brass-Plated Steel |
| Strap: | Steel |
| Plate: | Steel |
| Contacts: | Silver Cadmium Oxide Spring |
| Bumper: | Rubber |
| Ground Terminal: | Brass |
| Ground Screw: | Tri-Drive Zinc-Plated Steel |
