Product details

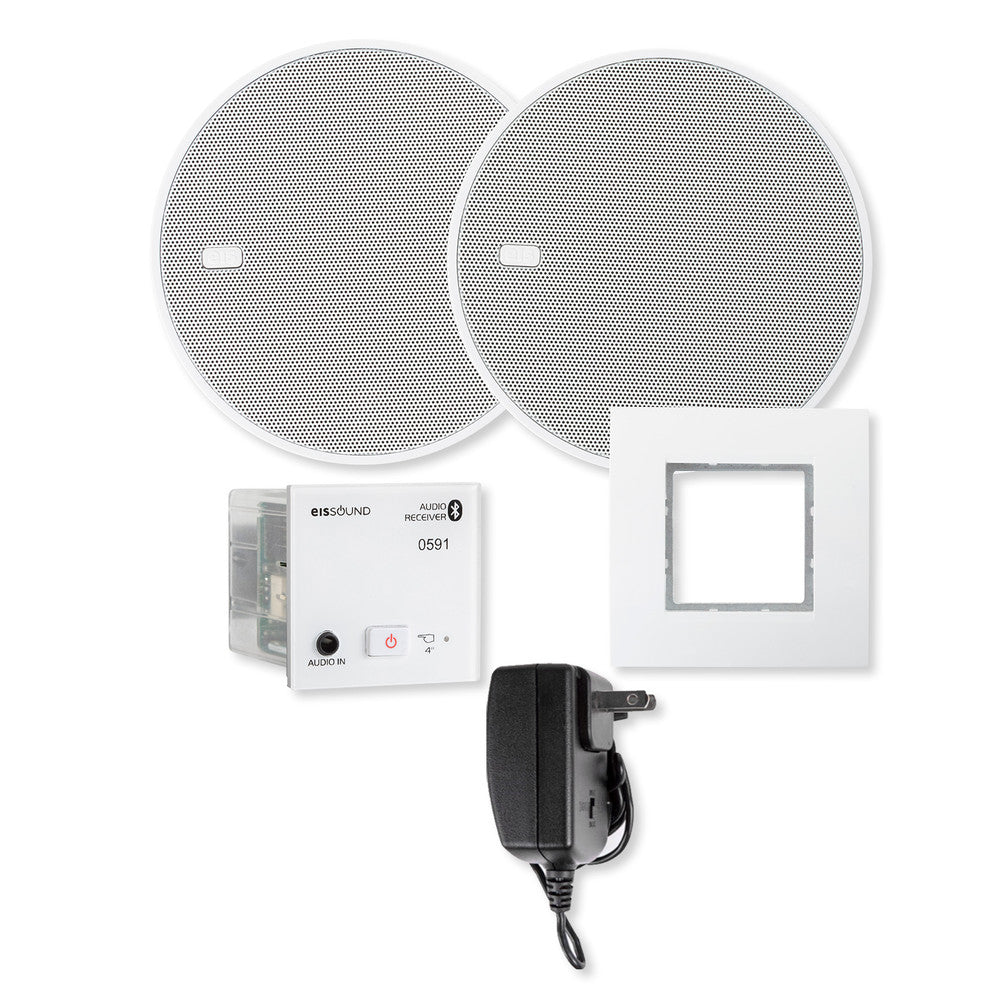

Experience high-quality sound with the EISsound In-Wall Bluetooth Audio Receiver. This sleek and stylish device comes with two 5-inch speakers and a power supply, making it the perfect addition to any home. With its easy-to-use Bluetooth connectivity, you can stream music wirelessly from your smartphone, tablet, or computer.
The in-wall design saves valuable space and provides a clean and seamless look. The speakers deliver clear and crisp audio, making it ideal for listening to your favorite music or watching movies. The EISsound In-Wall Bluetooth Audio Receiver is compatible with most Bluetooth-enabled devices and is easy to install, making it the perfect choice for anyone looking to enhance their audio experience. Upgrade your home entertainment system today with this top-quality audio receiver.
Product Specs
| Manufacturer Part #: | 5280D |
| UPC: | 8436031618815 |
| Outputs: | Stereo Line Right Speaker Left Speaker Amplifier Trigger |
| Speaker Impedance: | 4/8/16 ohms |
| Speaker Output: | 5W stereo max. |
| Speaker Color: | White |
| Other Connection: | Volume limitation and mono/stereo jumpers |
| LED Display: | Off: Disconnected and Audio Off |
| Bluetooth: | Blue Flashing – searching BT Device |
| Bluetooth: | Blue On – BT connected |
| Audio-In: | Red On – Audio-In Activated |
| Voltage Terminals VDC, GND: | Normal: 15Vdc Max: 16Vdc |
| Consumption Demand Bluetooth: | Minimum: 22mA Normal: 111Vdc |
| Consumption Demand Jack 3.5mm: | Minimum: 22mA Normal: 99Vdc |
| Input Signal Jack 3.5mm: | Normal: 100mVrms Maximum: 550mVrms |
| Input Signal Jack 3.5mm Input Impedance: | Minimum: 7Kohms Maximum: 60Kohms |
| Output Signal Output 4 ohm: | Maximum: 5Wrms |
| Output Signal Output 8 ohm: | Maximum: 2.5Wrms |
| Output Signal Output 16 ohm: | Maximum: 1.5Wrms |
| Line Output Signal Terminals 65, 66, 4: | Maximum: 1.82Vrms |
| Line Output Signal Terminals 65, 66, 4 Output Impedance: | Maximum: 50ohm |
| Amplifier Trigger Signal Terminals 62, 4: | Maximum: 14Vdc |
| Amplifier Trigger Signal Terminals 62, 4 Output Impedance: | Maximum: 1Kohms |
| Left/Right Channel Separation: | Normal: 58dB Passband: Minimum: 45Hz Maximum: 20000Hz |
| Distortion: | Normal: 0.1% |
| SNR: | Normal: 84dB |
| Bluetooth Identification Number: | Minimum: 0000 Maximum: 9999 |
| Bluetooth: | Class2 BT2.1 + EDR A2DP 1.2 AVRCP 1.4 |
| Wireless Transceiver: | 2.4GHz RF Power Transmitter: 7 dBm |
| Dimensions: | Exterior: 1.8 x 1.8 x 1.7 inches (45 x 45 x 42mm) Cavity: 1.8 x 1.8 x 1.4 inches (45 x 45 x 36mm) Face Cover: 1.8 x 1.8 inches (45 x 45mm) |
| Range: | 33 feet (10m) |
| Warranty: | 2-Year |
