SONOFF TH Elite 16A/20A WiFi Smart Switch Temperature and Humidity Monitoring Switch Smart Home work with DS18B20/ Si7021/ RL560

0 Reviews
In Stock

$33.98

SKU: 3256804200004743

Product details



  • Hign-concerned Chemical: None
  • Communication method: WI-FI
  • State of Assembly: Ready-to-Go
  • Gyro: Works with Alexa Google Home
  • Model Number: SONOFF TH Elite 16A/20A Wifi Switch
  • Max Speed: SONOFF Smart Home
  • Brand Name: SONOFF
  • Origin: Mainland China
  • Certification: CE,FCC
  • Product Name: SONOFF TH Elite 16A/20A
  • TH Elite: 16A, 20A
  • Model: THR316D/THR320D
  • THR316D Input/Output: 100-240V~ 50/60Hz 16A Max
  • THR320D Input/Output: 100-240V~ 50/60Hz 16A Max
  • Casing material: PC V0
  • Wi-Fi: IEEE 802.11 b/g/n 2.4GHz
  • Dry contact: 5-30V, 1A Max

Note

The WTS01 shipped from the Russian warehouse is actually the stock of the old Version of DS18B20(RJ9).

SONOFF TH Elite 16A/20A WiFi Smart Switch Temperature and Humidity Monitoring Switch Smart Home work with DS18B20/ Si7021/ RL560

SONOFF TH Elite is a Smart Temperature and Humidity monitoring switch based on ESP32. With an LCD screen, TH Elite keeps monitoring the temperature and humidity in real-time, once they reach your preset threshold or the device’s on/off state changes, you will receive the push notification on the phone. Support to connect 20A Max high load equipment like electric floor heating. You can replace your dry contact outputted traditional thermostat with TH Elite, to control the combi boiler or any other systems controlled by the ordinary switch. TH Elite support to review 6-Month Temp & Humi historical data accurate to the hour. In the smart scene, temperature, humidity, on, off support setting as the trigger, on, off, invert as execute actions. Support adding SONOFF devices to Home Assistant for control and automation through eWeLink add-on. TH Elite turns your traditional thermostat into smart, automates your irrigation system, and gives you an easy way to monitor the temperature and humidity.

Note:

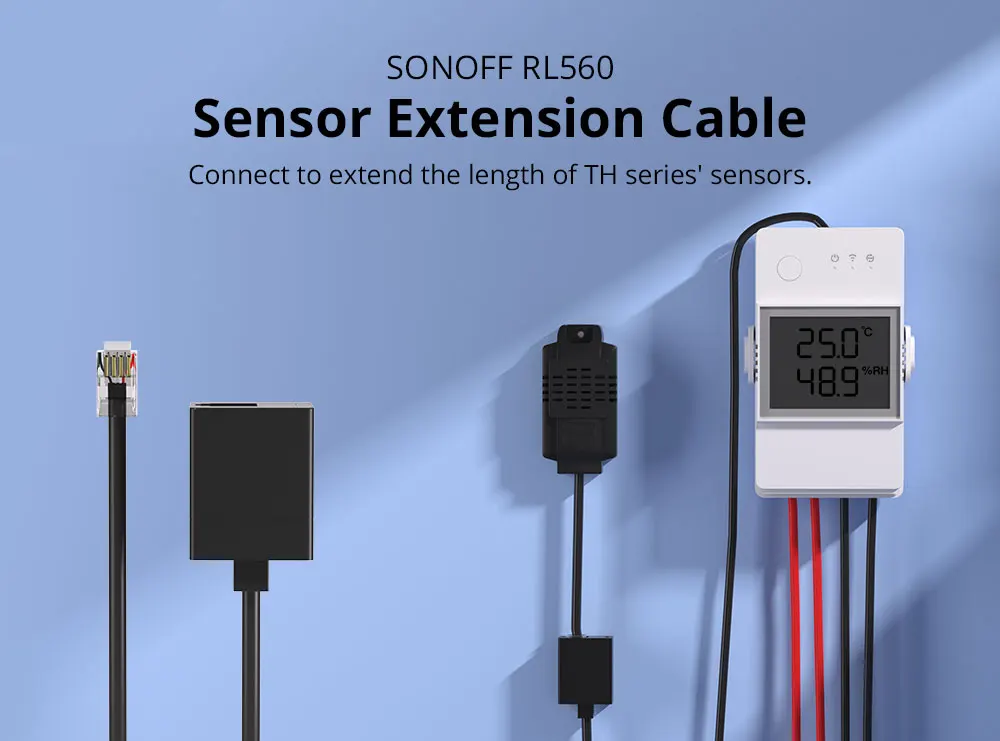

Note 1: The RL560 is the new sensor extension cable with RJ9, it can connect the SONOFF temperature and humidity sensors to extend your device’s distance. DS18B20, THS01 can be extended to 60M, and MS01 soil moisture sensor can be extended to 10M.

Feature:

【20A Max & Dry Contact Output】 Support to connect 20A Max high load, dry contact output.
【LCD Screen】Real-time monitoring of temperature and humidity data, the screen refreshed every 5S.
【6-Month Temp & Humi Historical Data by Hours】 Support to review the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.
【Local Automatic Control】Support LAN control, automatic control is more reliable. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
【Voice Control and Query】Work with Alexa, Google Assistant, you can query temperature and humidity values by your voice.

You Safety, Our Responsibility

1. Strictly selects UL safety components and RoHS environmental protection materials to design the products.
2. The high-grade flame-retardant shell material is used.
3. Cut off high voltage generated by a lightning strike or unstable power supply when thundering.

Different Sensors for Different Scenes

The sensor connector is upgraded to RJ9, supporting hot plugging making the connection more stable and reliable.

Dry Contact (volt-free contact)

Dry contact output acts as a “switch”, controlling the on/off state of the circuit only but not powering it. Replace your dry contact outputted traditional thermostat with TH, to control the combi boiler or any other systems controlled by the ordinary switch.

*The output state of normally open dry contact is consistent with power relay, are not available to be controlled separately now.

Reliable Temp & Humi Control

TH supports LAN control, Wi-Fi disconnected will not affect the operation of your device.

6-month Temp & Humi History Data

Support to review the temp & humi history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.

Timely Notifications

TH keeps monitoring the temperature and humidity in real time, once they reach your preset threshold or the device’s on/off state changes, you will receive the Push notification on the phone.

Voice Control

Product Details:
